TWO-WAY STAGE MONITOR_Product

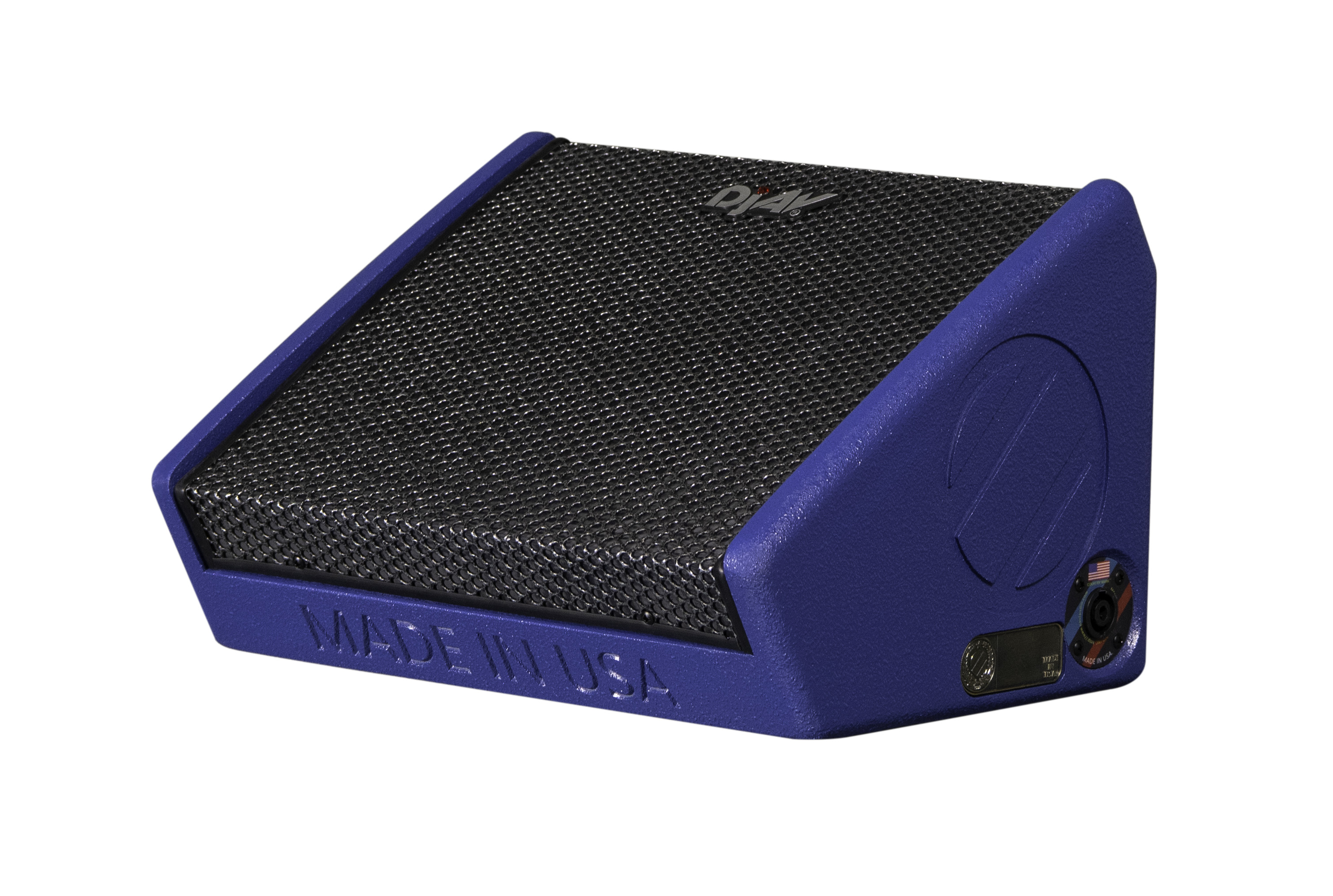

  • Low-Frequency Transducer8" (200mm) High performance magnet
    High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide


    L1M :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    250W :(Recommended) Handling Power
    8 ohms: Impedance Nominal
    1000W :(Peak) Handling Power
    3500Hz – 12dB/octave :Frequencies Crossover
    90Hz – 20kHz :(-3dB)Response Frequency
    ([email protected]) 96dB Sensitivity
    250W (8Ohms) :Power Amplifier Recommended Mximum

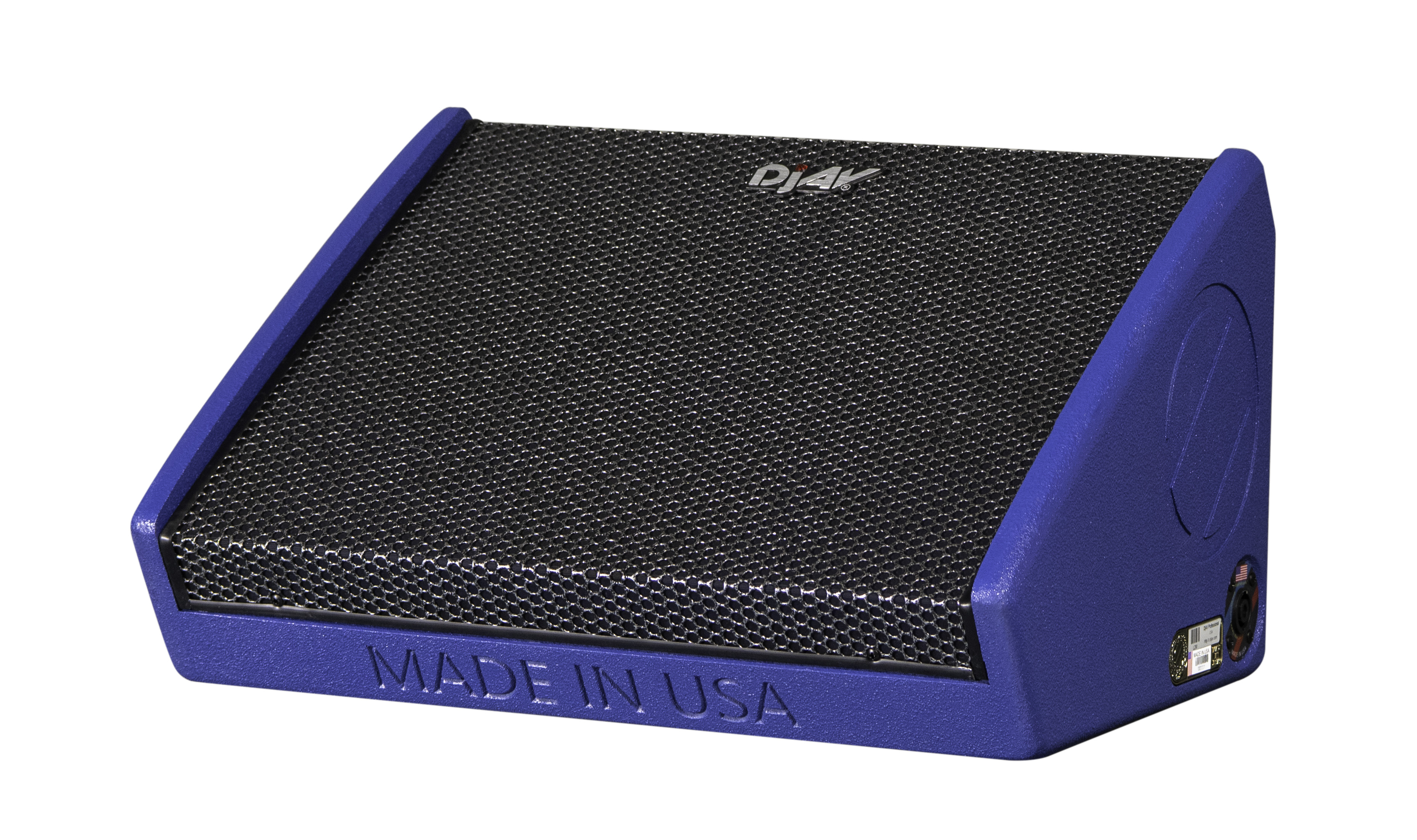

  • Low-Frequency Transducer Double 8" (200mm) High performance magnet
    High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide


    L2M :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    500W :(Recommended) Handling Power
    4 ohms: Impedance Nominal
    2000W :(Peak) Handling Power
    3500Hz – 12dB/octave :Frequencies Crossover
    80Hz – 20kHz :(-3dB)Response Frequency
    ([email protected]) 98dB Sensitivity
    500W (4Ohms) :Power Amplifier Recommended Mximum
