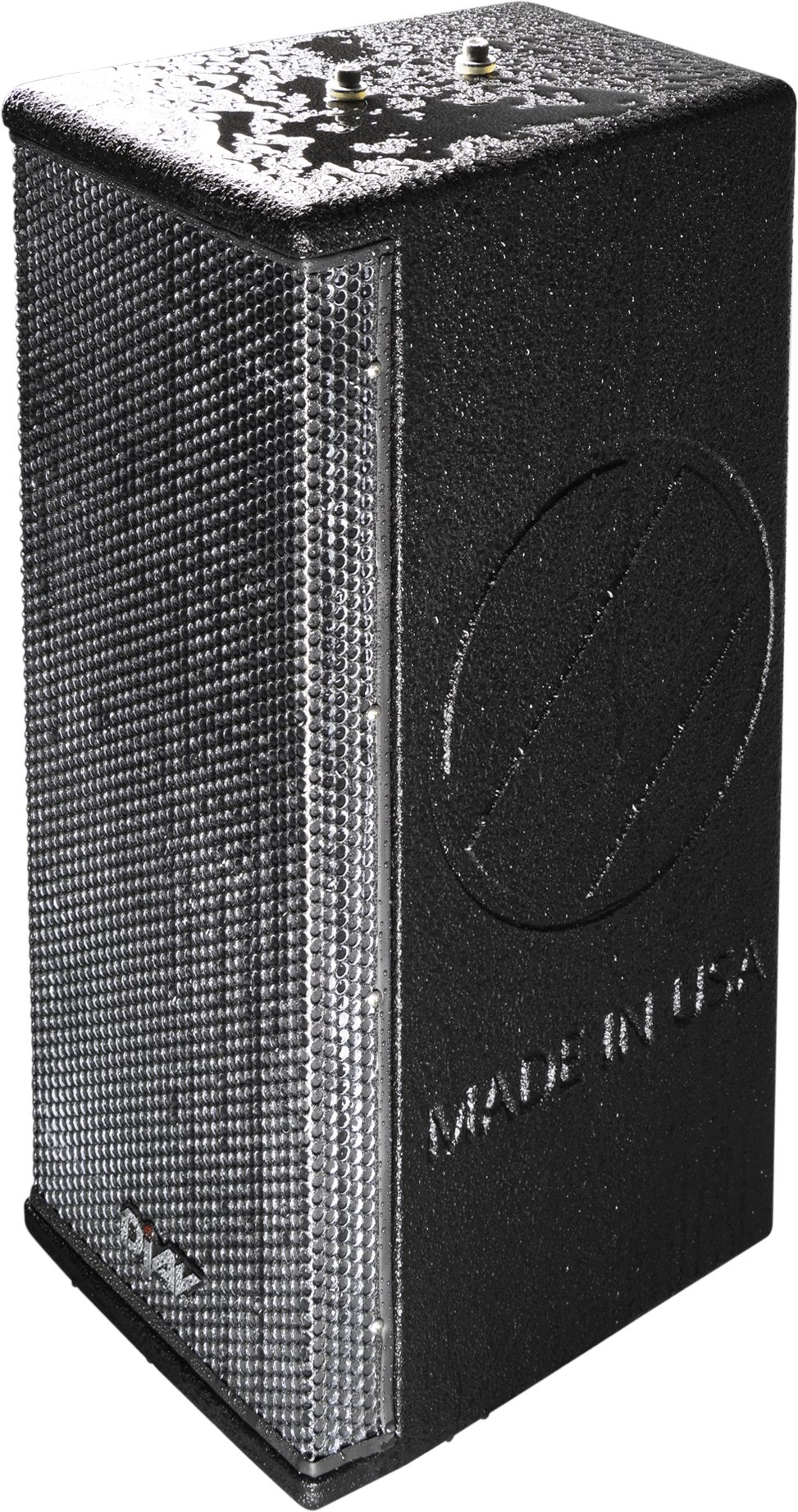

Low-Frequency Transducer Double 8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, WATERPROOF/ DUST-PROOF/ SUNSCREEN

WDS2 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
500W :(Recommended) Handling Power
4 ohms: Impedance Nominal
2000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
80Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) 98dB Sensitivity
500W (4Ohms) :Power Amplifier Recommended Mximum

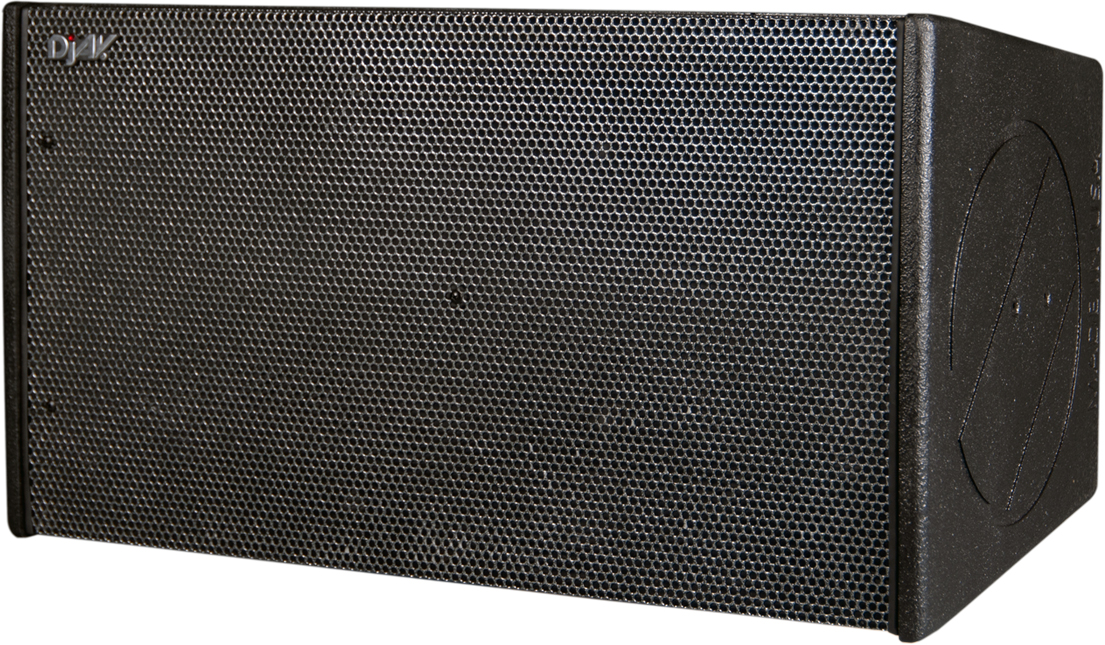

Low-Frequency Transducer 15", MId Double 8" High performance magnet
High-Frequncy Transducer 1"x4 (25mm) Titanium- laminate dome, WATERPROOF/ DUST-PROOF/ SUNSCREEN

WDS3 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
600W :(Recommended) Handling Power
8 ohms: Impedance Nominal
2400W :(Peak) Handling Power
500Hz, 3500Hz – 12dB/octave :Frequencies Crossover
40Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) 98dB Sensitivity
600W (8Ohms) :Power Amplifier Recommended Mximum

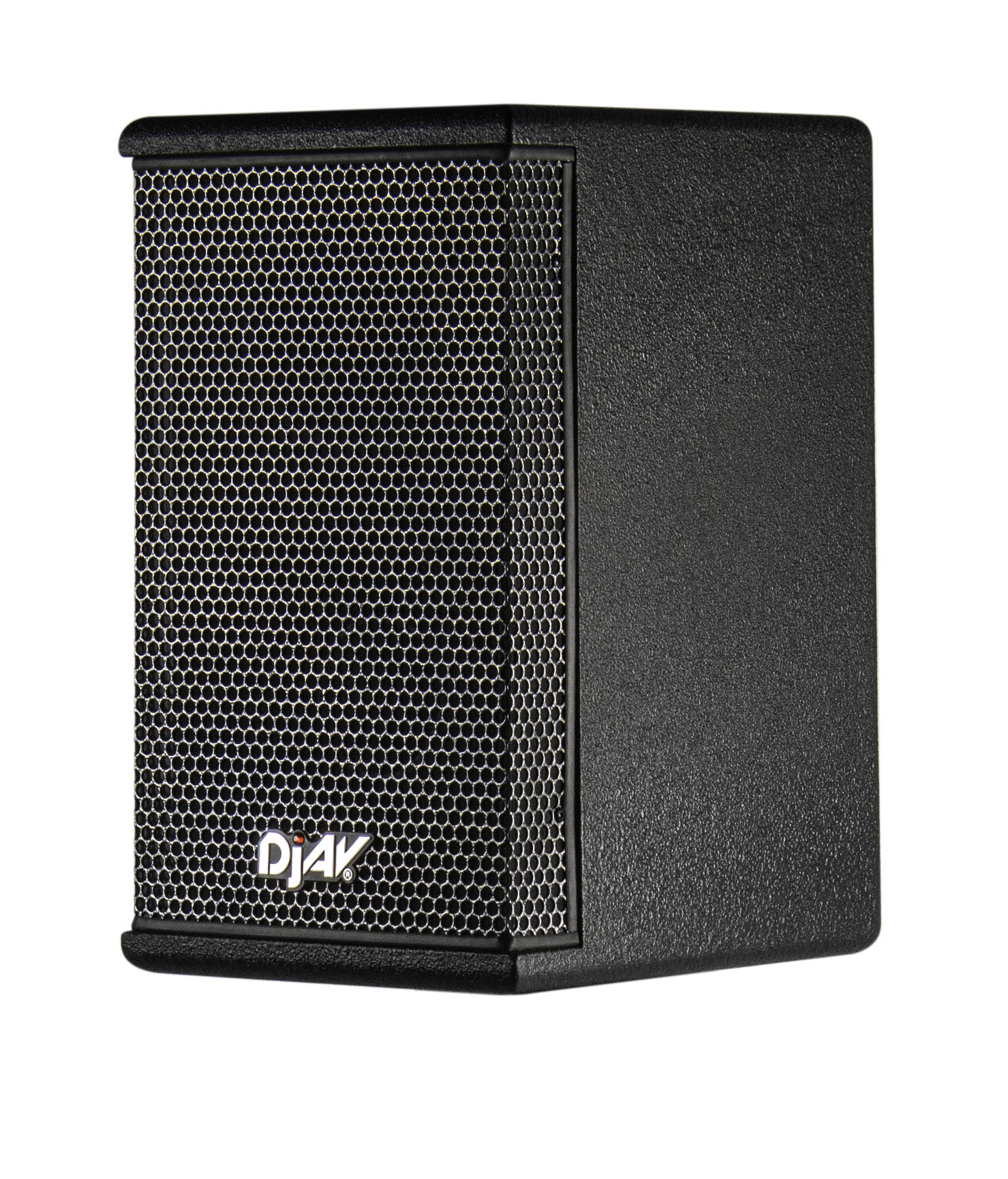

Low-Frequency Transducer Double 8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide

808Q:Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
200W :(Recommended) Handling Power
8 ohms: Impedance Nominal
800W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
40Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
200W (808Qa) :Power Amplifier Recommended Mximum

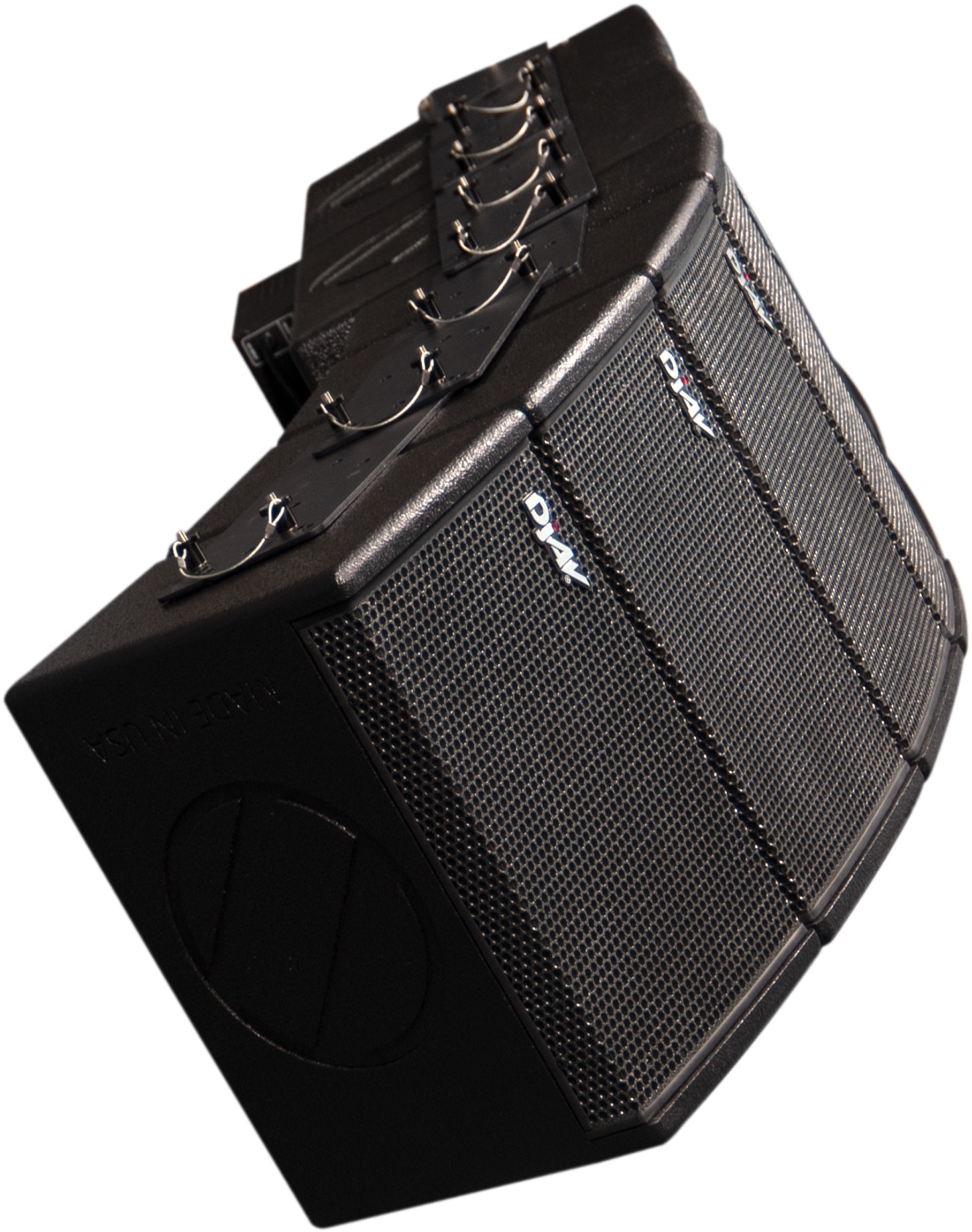

Low-Frequency Transducer 12"(302), Mid 8" (818) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide

818+302 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
None :(Recommended) Handling Power
None : Impedance Nominal
None :(Peak) Handling Power
500Hz – 12dB/octave :Frequencies Crossover
60Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) None Sensitivity
None :Power Amplifier Recommended Mximum

Low-Frequency Transducer 18"(303), Mid Double 8" (616) High performance magnet
High-Frequncy Transducer 1"x2 (25mm) Titanium- laminate dome, waveguide

616+303 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
None:(Recommended) Handling Power
None : Impedance Nominal
None :(Peak) Handling Power
500Hz – 12dB/octave :Frequencies Crossover
50Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) None Sensitivity
None :Power Amplifier Recommended Mximum

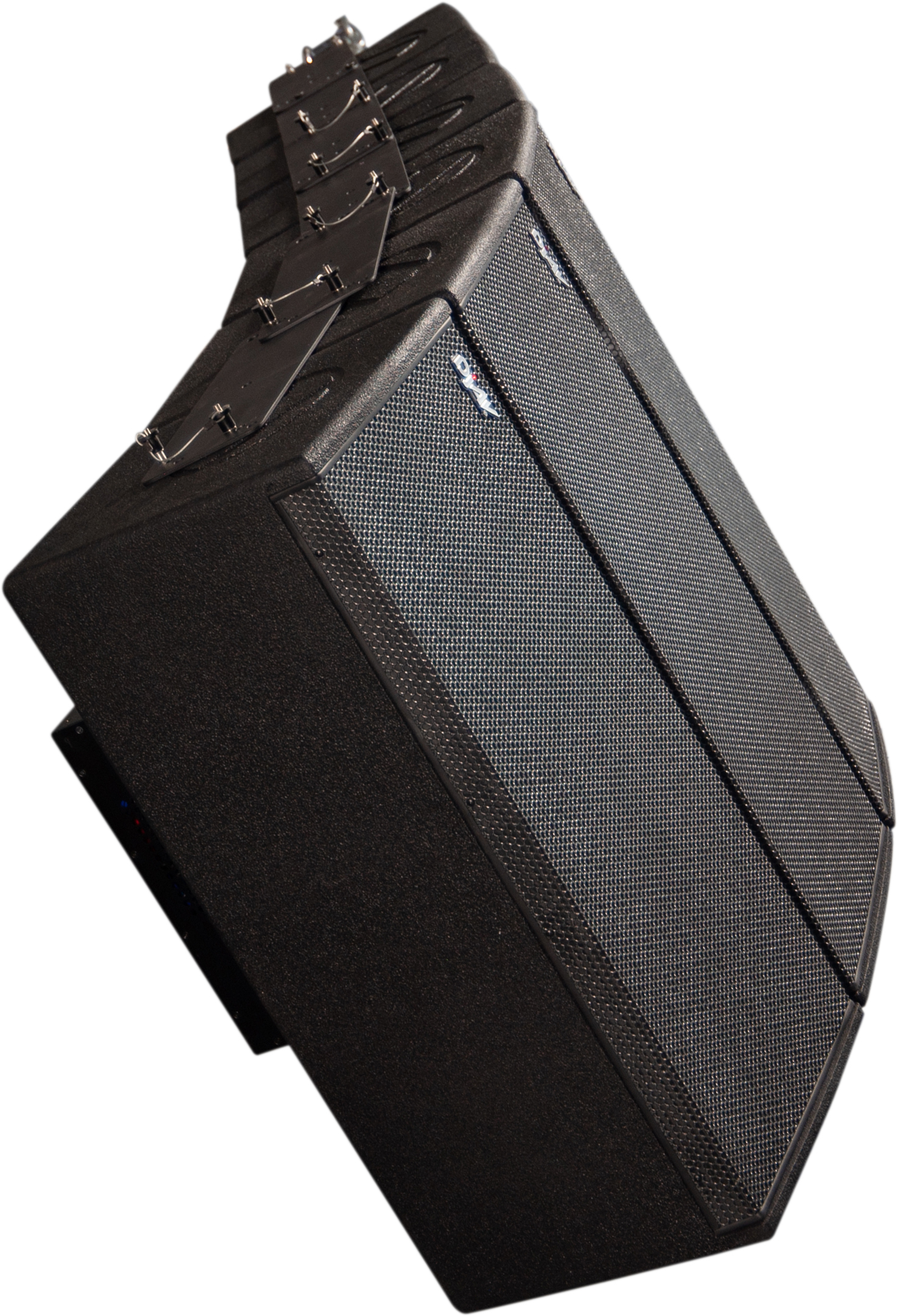

Low-Frequency Transducer Double 12" High performance magnet
High-Frequncy Transducer 1"x3 (25mm) Titanium- laminate dome, waveguide

515 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
500W :(Recommended) Handling Power
4 ohms: Impedance Nominal
2000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
40Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) None Sensitivity
500W (4Ohms) :Power Amplifier Recommended Mximum

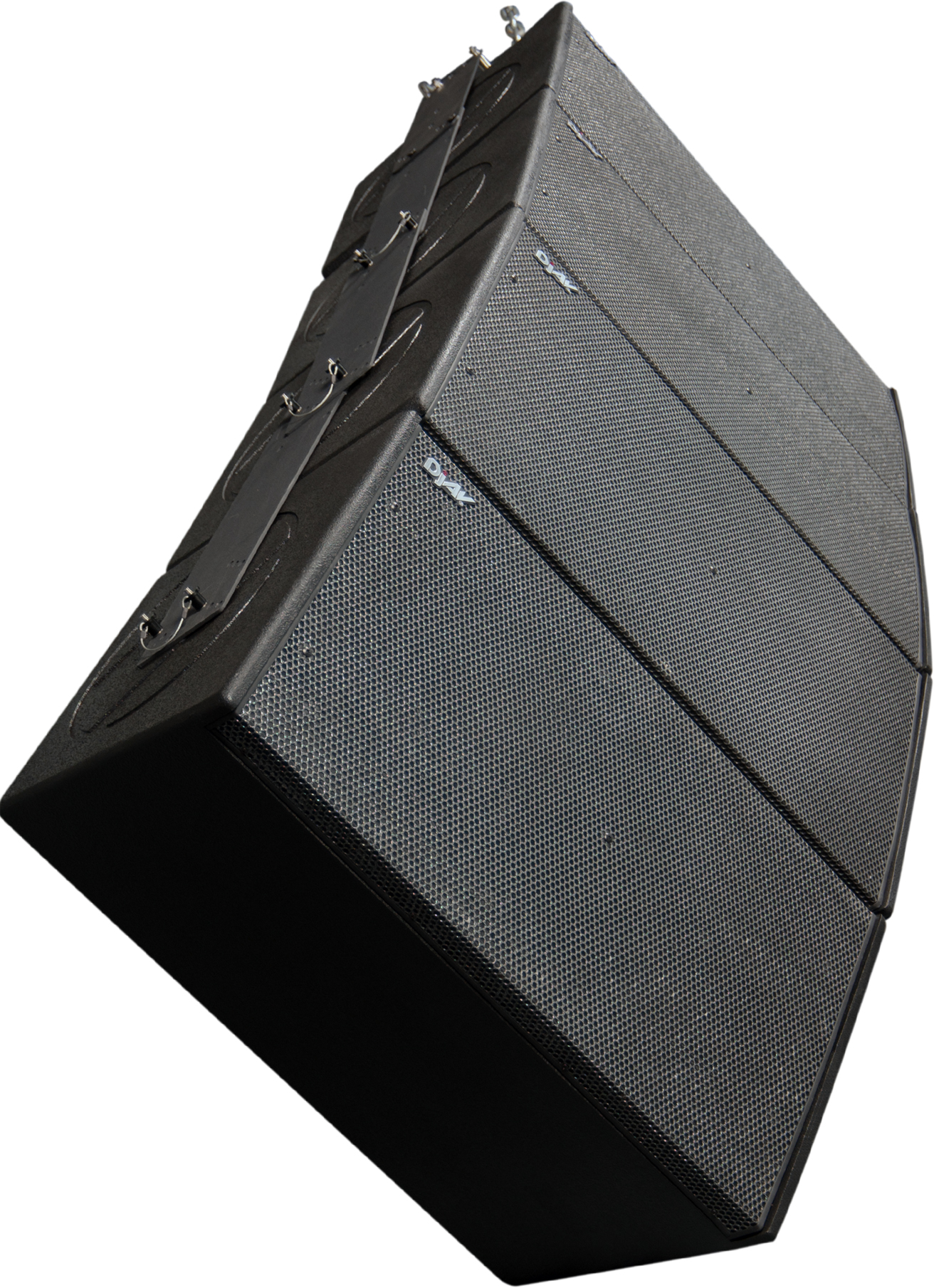

Low-Frequency Transducer15", Mid Double 8" High performance magnet
High-Frequncy Transducer 1"x4 (25mm) Titanium- laminate dome, waveguide

717 :Series

U.P.W.E. Black :Finish
Yes :Wall-Mount Capable
600W :(Recommended) Handling Power
8 ohms: Impedance Nominal
2400W :(Peak) Handling Power
500Hz, 3500Hz – 12dB/octave :Frequencies Crossover
40Hz – 20kHz :(-3dB)Response Frequency
(2.83V@1m) None Sensitivity
600W (8Ohms) :Power Amplifier Recommended Mximum
