LINE ARRAY ELEMENT_Product

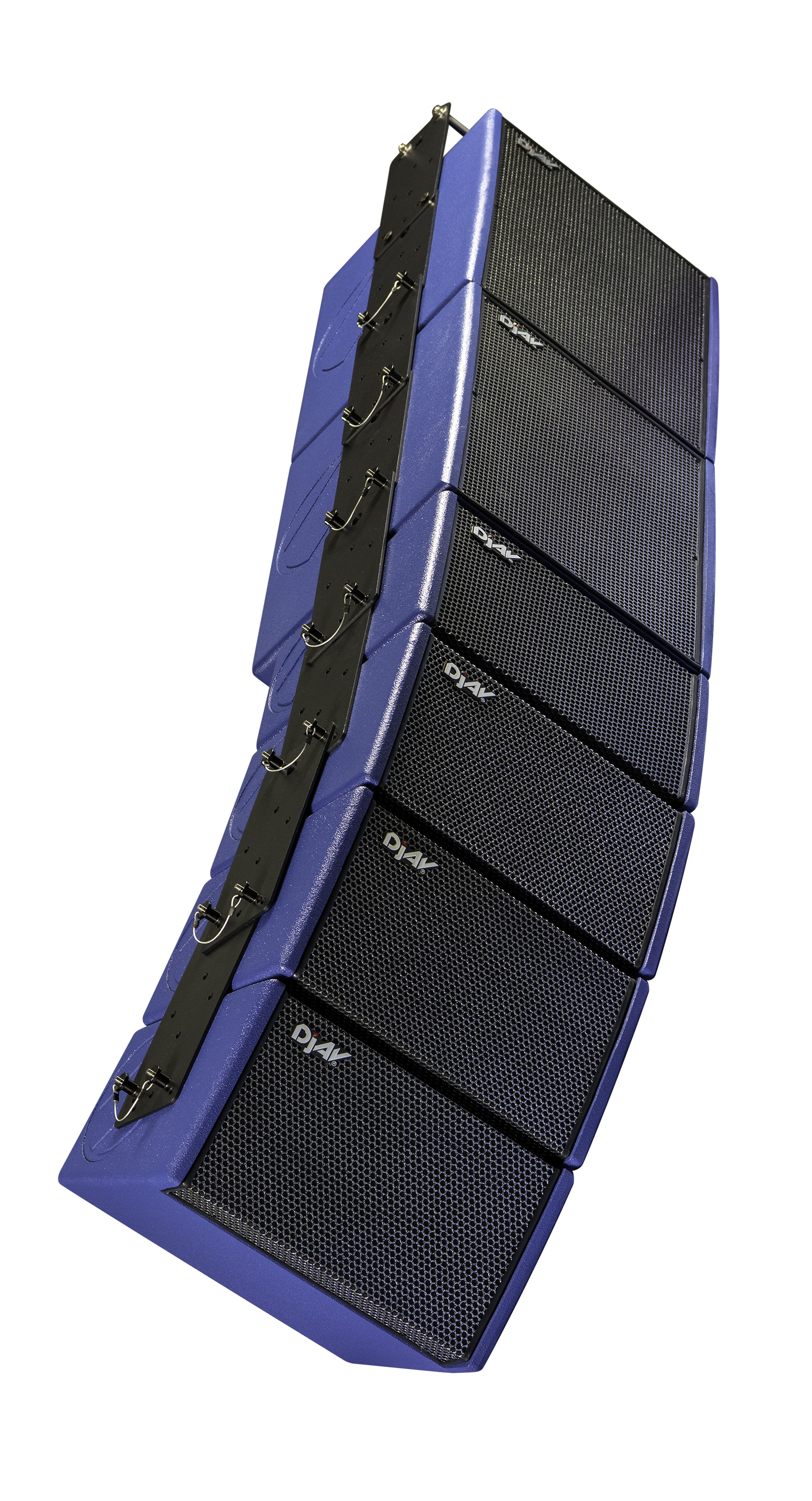

  • Low-Frequency Transducer12"(L1B),Mid 8“(L1) High performance magnet
    High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide


    L1+L1B :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    None :(Recommended) Handling Power
    8 ohms: Impedance Nominal
    None :(Peak) Handling Power
    500Hz – 48dB/octave :Frequencies Crossover
    50Hz – 20kHz :(-3dB)Response Frequency
    (2.83V@1m) -dB Sensitivity
    None :Power Amplifier Recommended Mximum

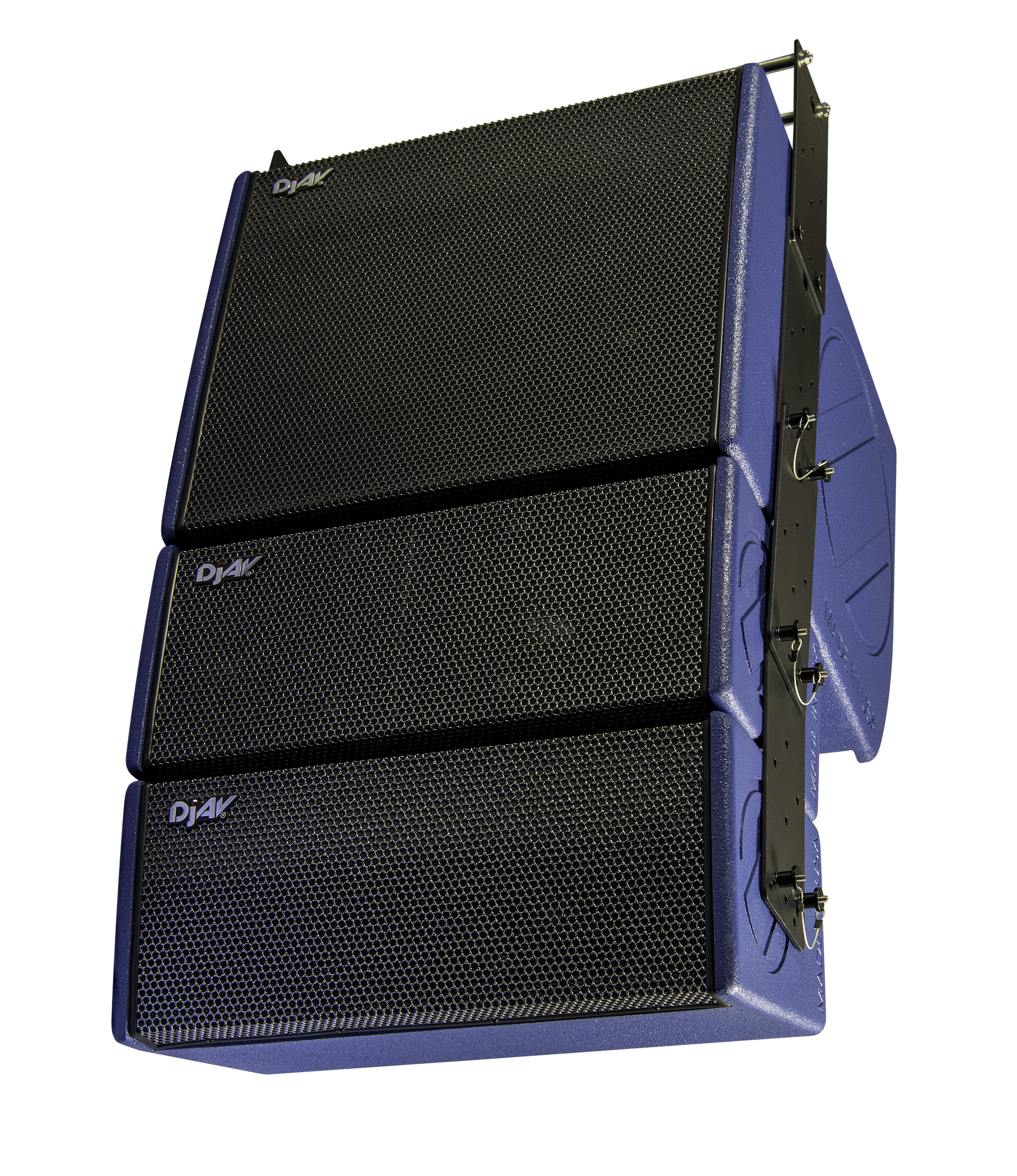

  • Low-Frequency Transducer 18"(L2B) Mid Double 8" (L2) High performance magnet
    High-Frequncy Transducer 1"x2 (25mm) Titanium- laminate dome, waveguide


    L2+L2B :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    None :(Recommended) Handling Power
    8 ohms(L2B), 4 ohms(L2): Impedance Nominal
    None :(Peak) Handling Power
    500Hz – 48dB/octave :Frequencies Crossover
    40Hz – 20kHz :(-3dB)Response Frequency
    (2.83V@1m) -dB Sensitivity
    None :Power Amplifier Recommended Mximum

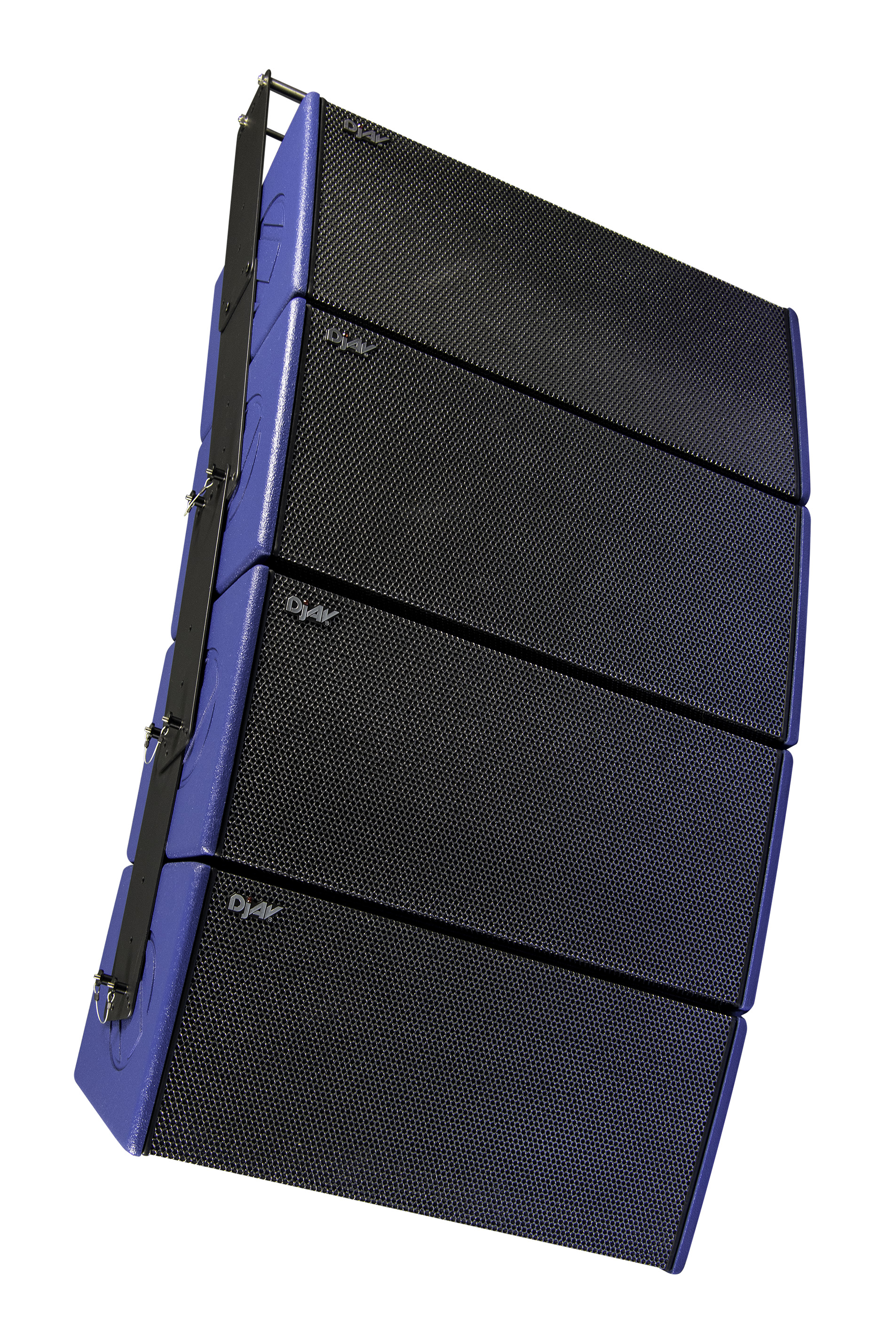

  • Low-Frequency Transducer Double 12" (300mm) High performance magnet
    High-Frequncy Transducer 1"x3 (25mm) Titanium- laminate dome, waveguide


    L3 :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    500W :(Recommended) Handling Power
    4 ohms: Impedance Nominal
    2000W :(Peak) Handling Power
    3500Hz – 12dB/octave :Frequencies Crossover
    40Hz – 20kHz :(-3dB)Response Frequency
    (2.83V@1m) 98dB Sensitivity
    500W (4Ohms) :Power Amplifier Recommended Mximum

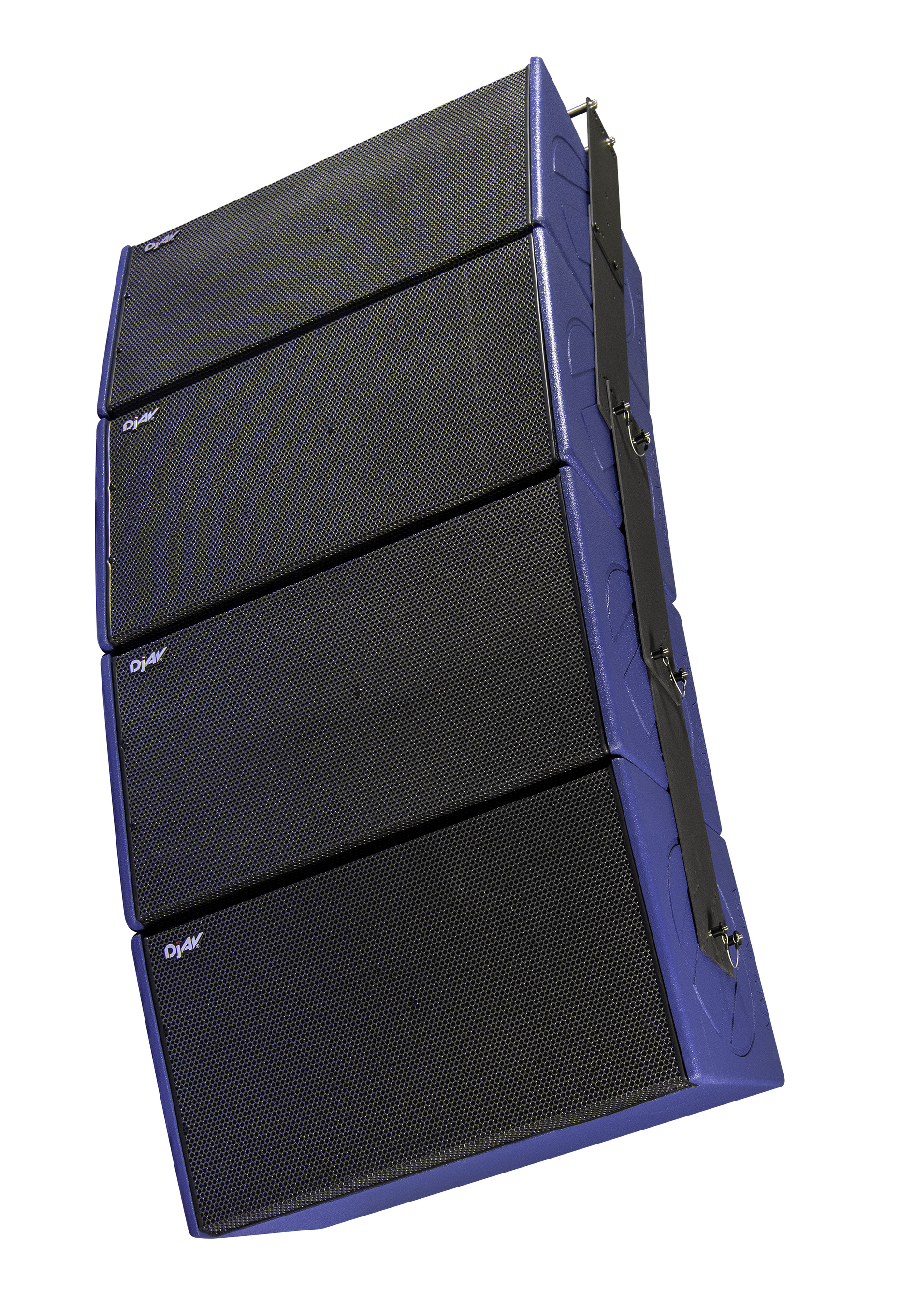

  • Low-Frequency Transducer 15", MID Double 8" (200mm) High performance magnet
    High-Frequncy Transducer 1"x4 (25mm) Titanium- laminate dome, waveguide


    L4 :Series

    U.P.W.E. Blue :Finish
    Yes :Wall-Mount Capable
    600W :(Recommended) Handling Power
    8 ohms: Impedance Nominal
    2400W :(Peak) Handling Power
    500Hz, 3500Hz – 12dB/octave :Frequencies Crossover
    40Hz – 20kHz :(-3dB)Response Frequency
    (2.83V@1m) 97dB Sensitivity
    600W (8Ohms) :Power Amplifier Recommended Mximum
