Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide

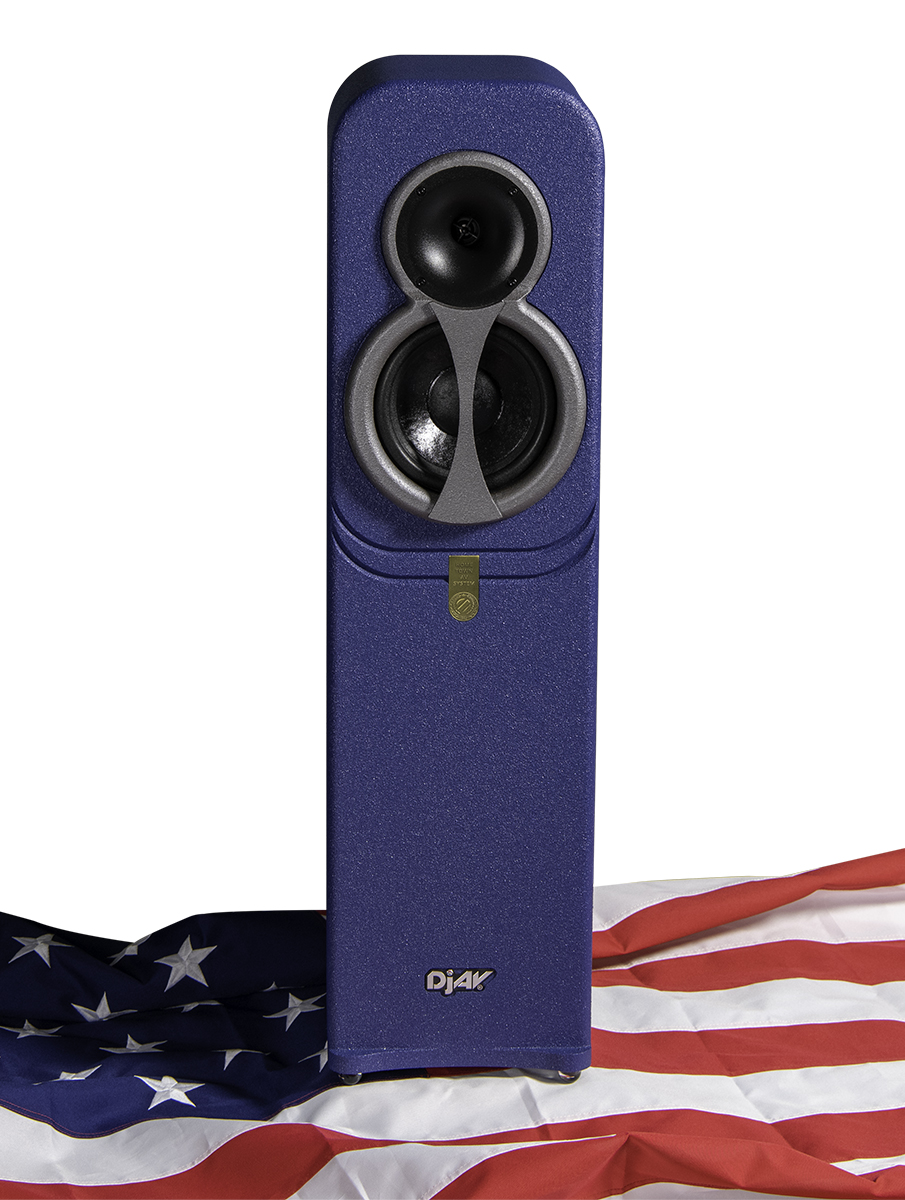

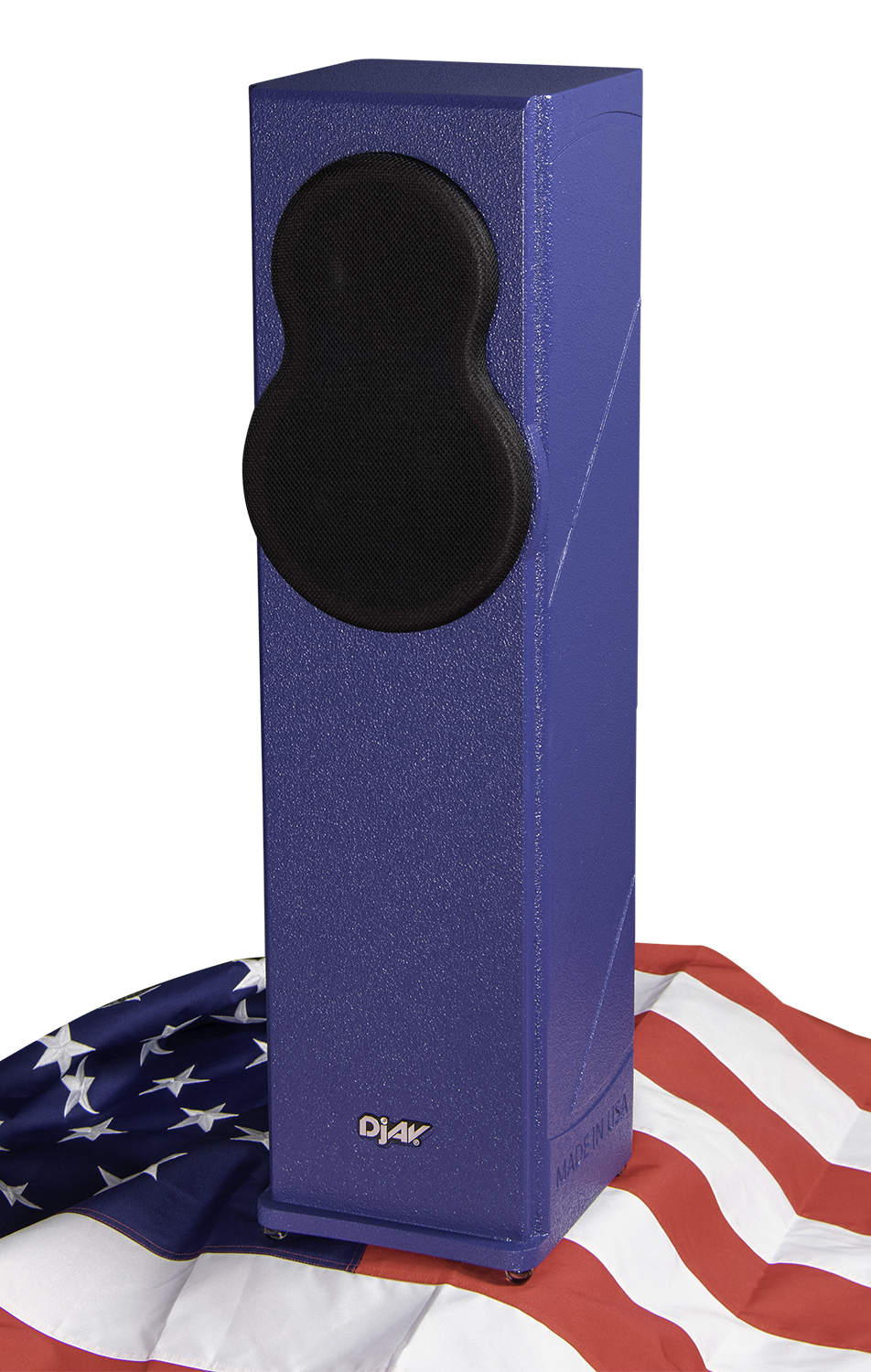

Q2 :Series

U.P.W.E. Blue :Finish
None :Wall-Mount Capable
250W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
22Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
250W (Av1) :Power Amplifier Recommended Mximum

Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide

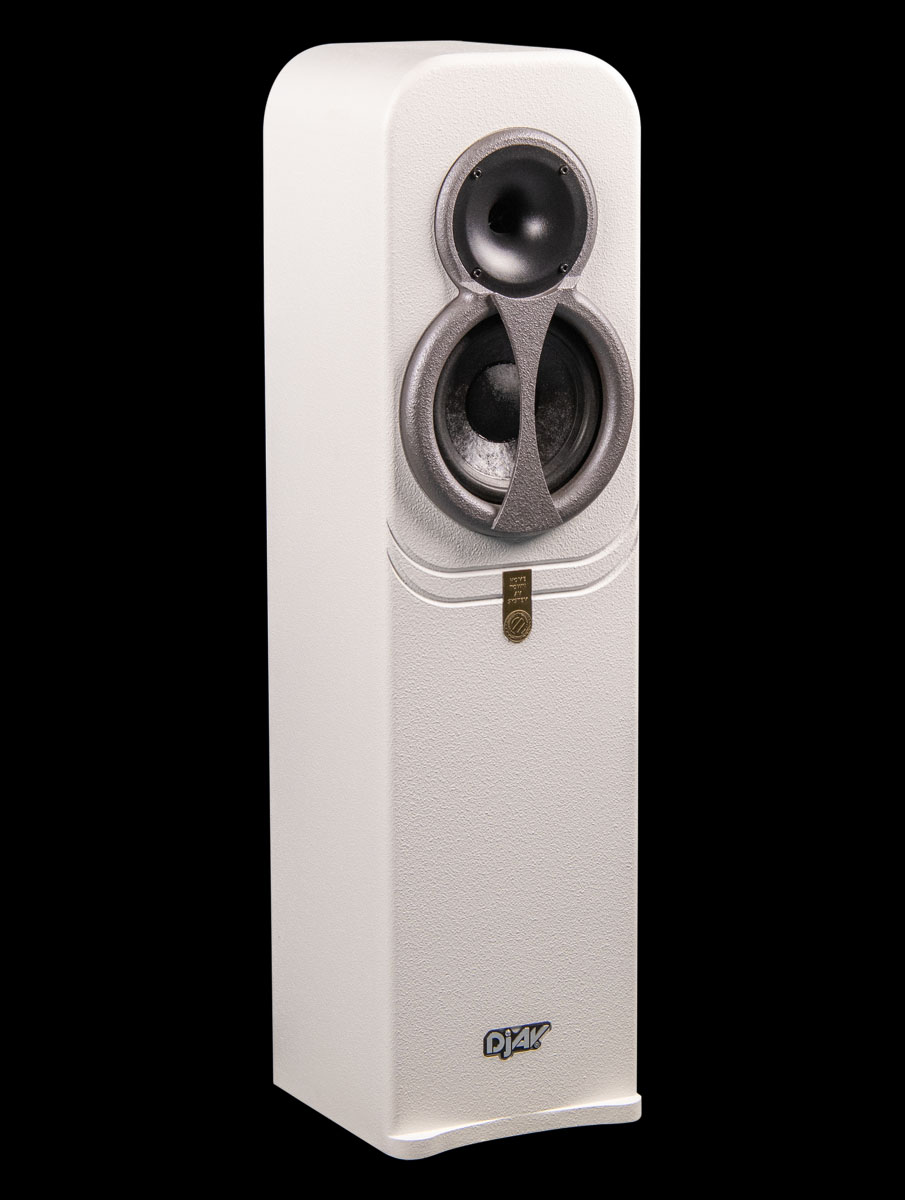

Q2W  :Series

U.P.W.E. White (Blue optional) :Finish
None :Wall-Mount Capable
250W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
20Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
250W (Av1) :Power Amplifier Recommended Mximum

Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome

Sealing

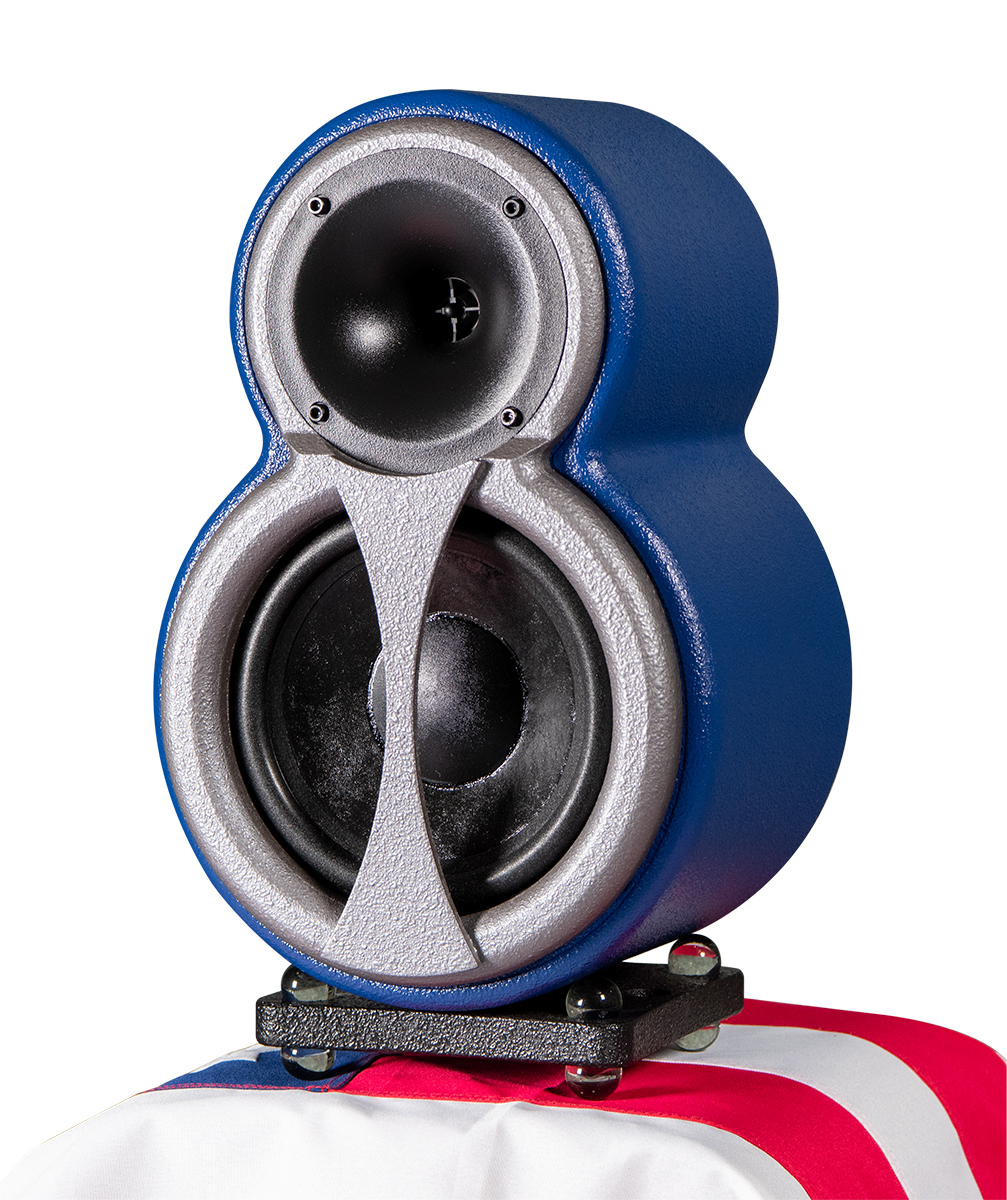

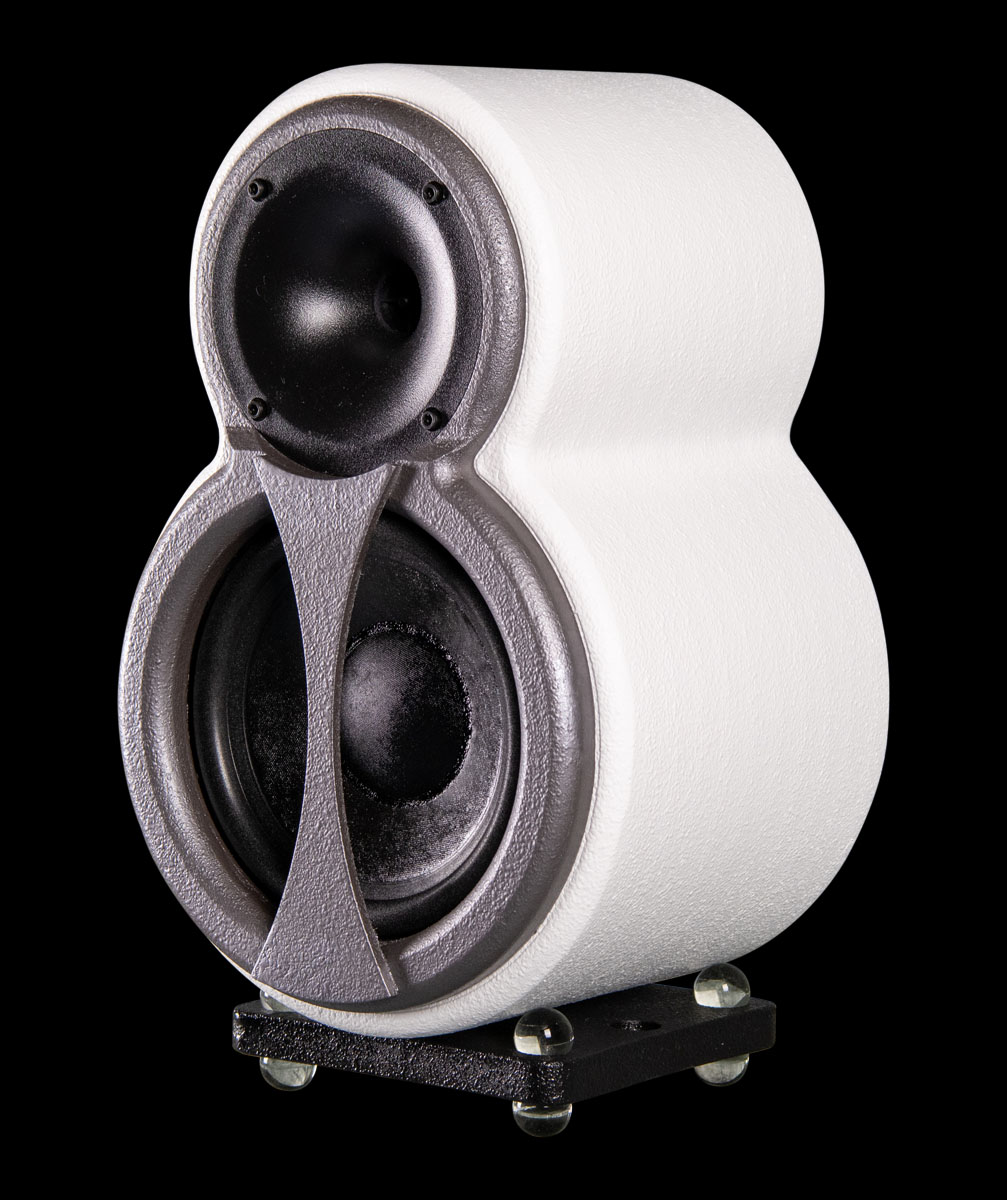

Q3W :Series

U.P.W.E. White (Blue optional) :Finish
Yes :Wall-Mount Capable
250W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
38Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
250W (Av1) :Power Amplifier Recommended Mximum

Low-Frequency Transducer 12" (200mm) High performance magnet
waveguide

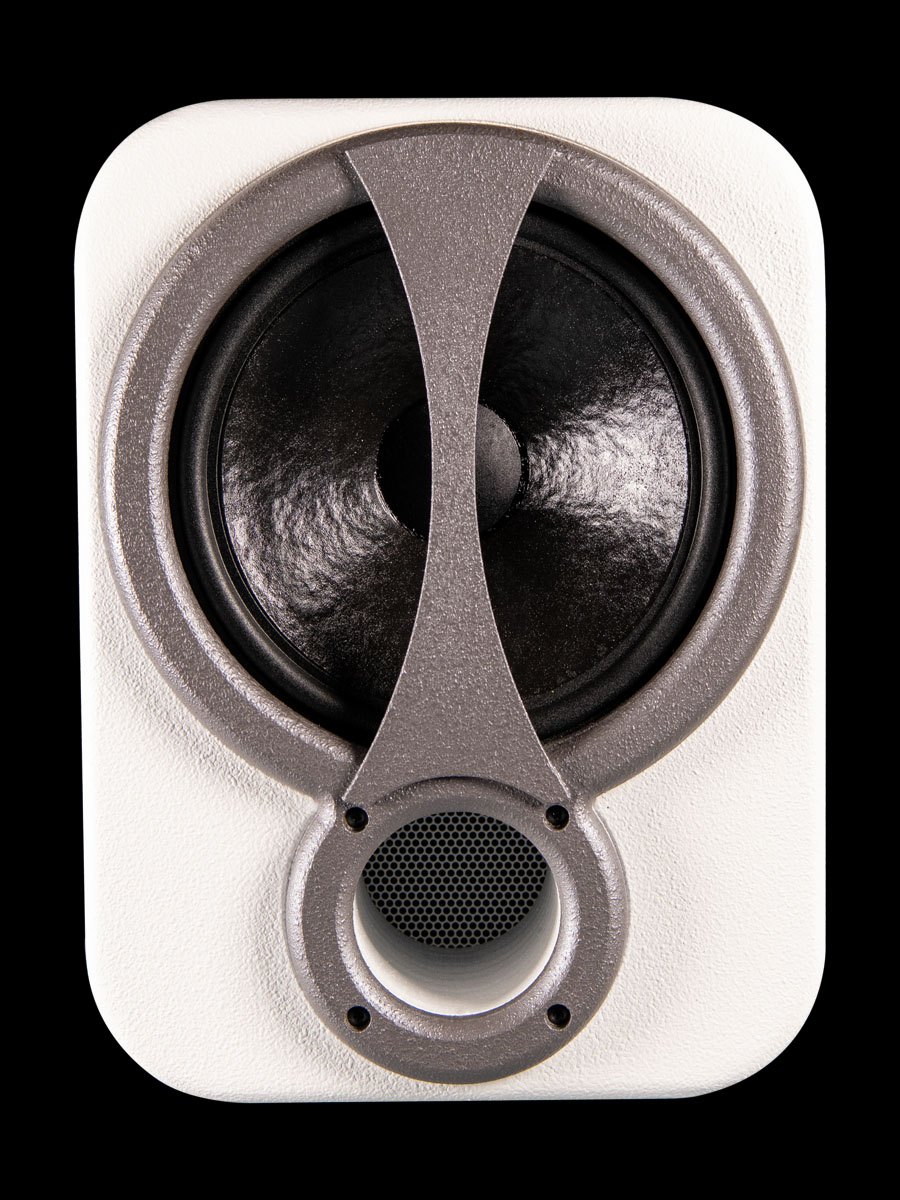

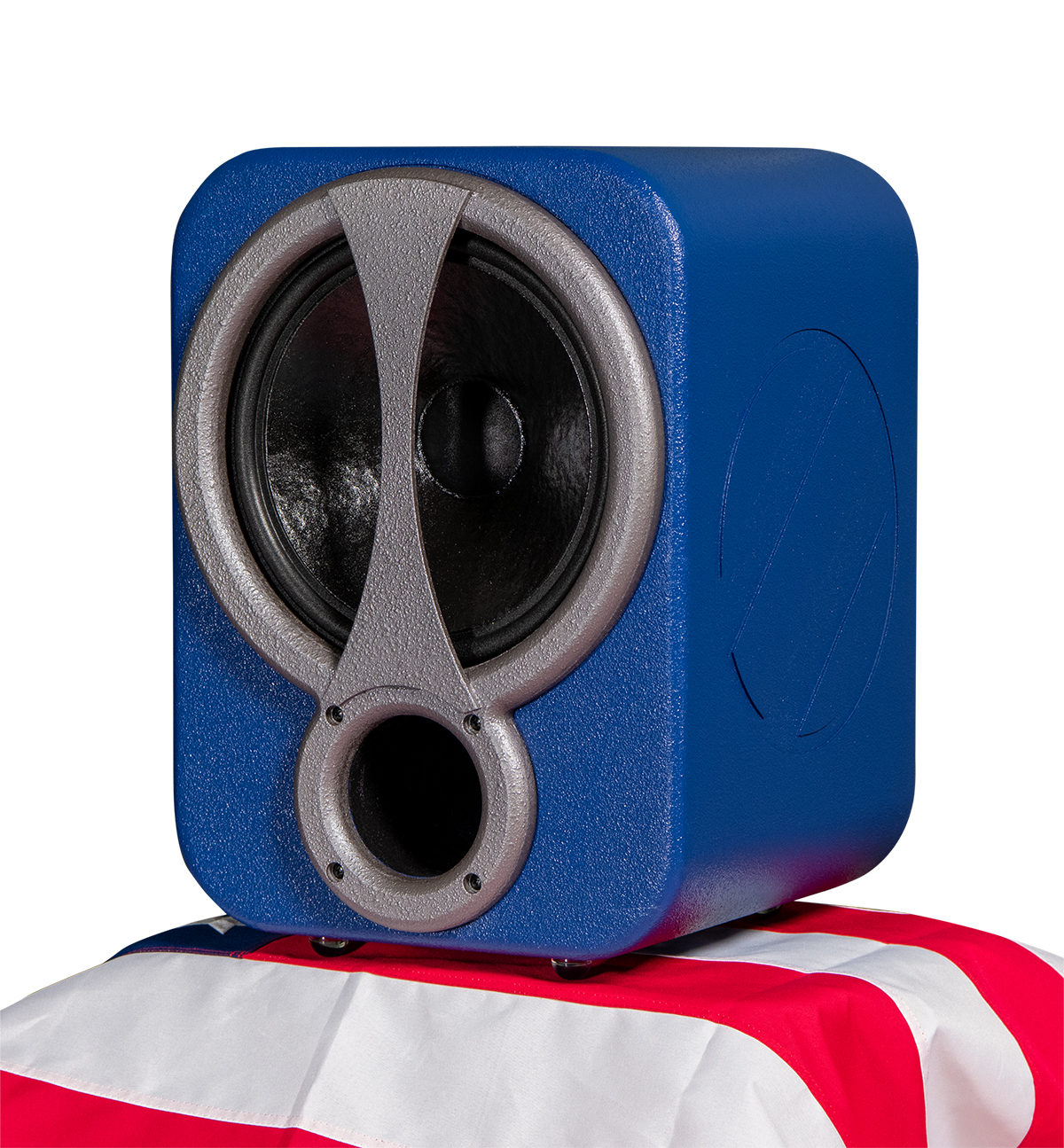

Q4W :Series

U.P.W.E. White (Blue optional) :Finish
None :Wall-Mount Capable
300W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1200W :(Peak) Handling Power
None :Frequencies Crossover
20Hz – :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
300W (8 Ohms) :Power Amplifier Recommended Mximum

Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide

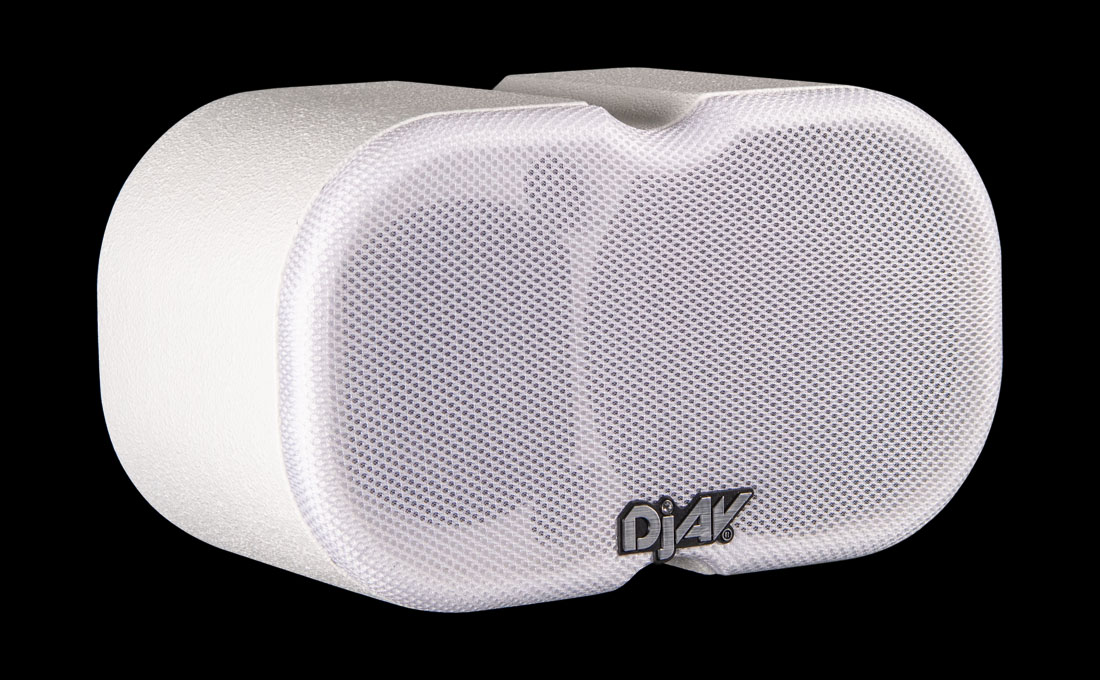

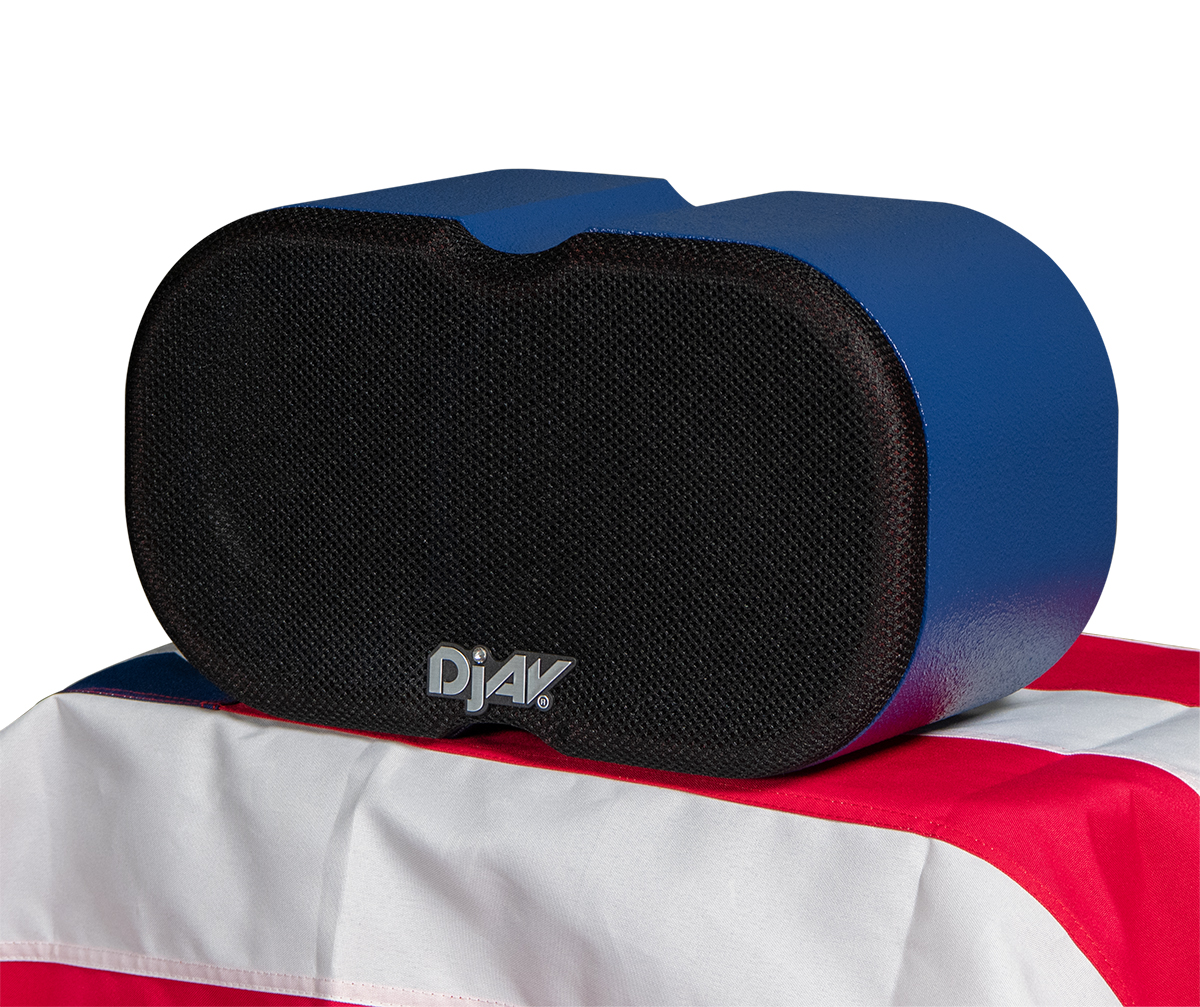

Q5 :Series

U.P.W.E. Blue(White optional) :Finish
Yes :Wall-Mount Capable
250W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1000W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
80Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
250W (Av1) :Power Amplifier Recommended Mximum

Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide, In-Wall Speaker

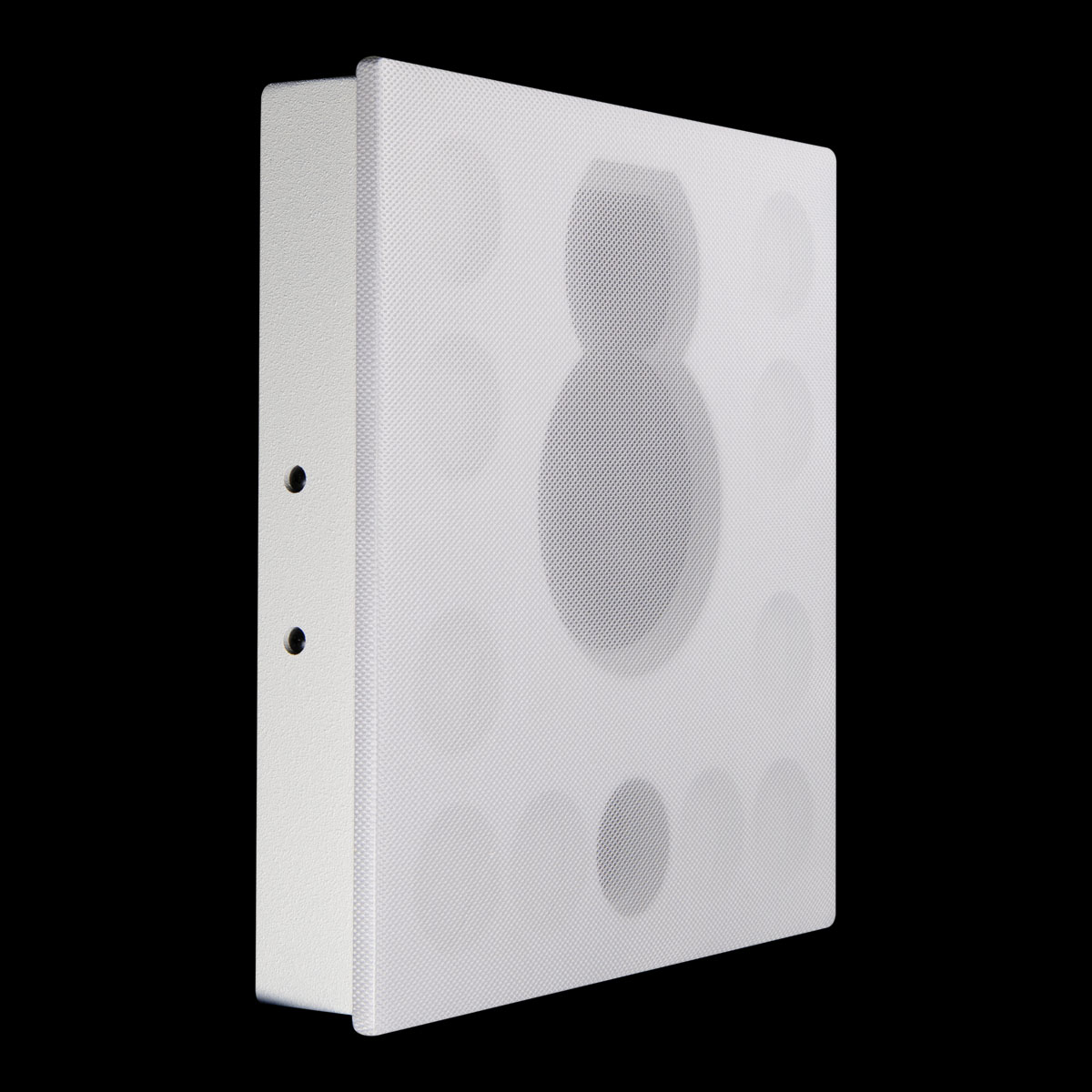

Q6 :Series

U.P.W.E. White :Finish
Yes :Wall-Mount Capable
300W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1200W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
90Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
300W (8 Ohms) :Power Amplifier Recommended Mximum
Q6 Data Sheets

Low-Frequency Transducer8" (200mm) High performance magnet
High-Frequncy Transducer 1" (25mm) Titanium- laminate dome, waveguide, In-Wall Speaker

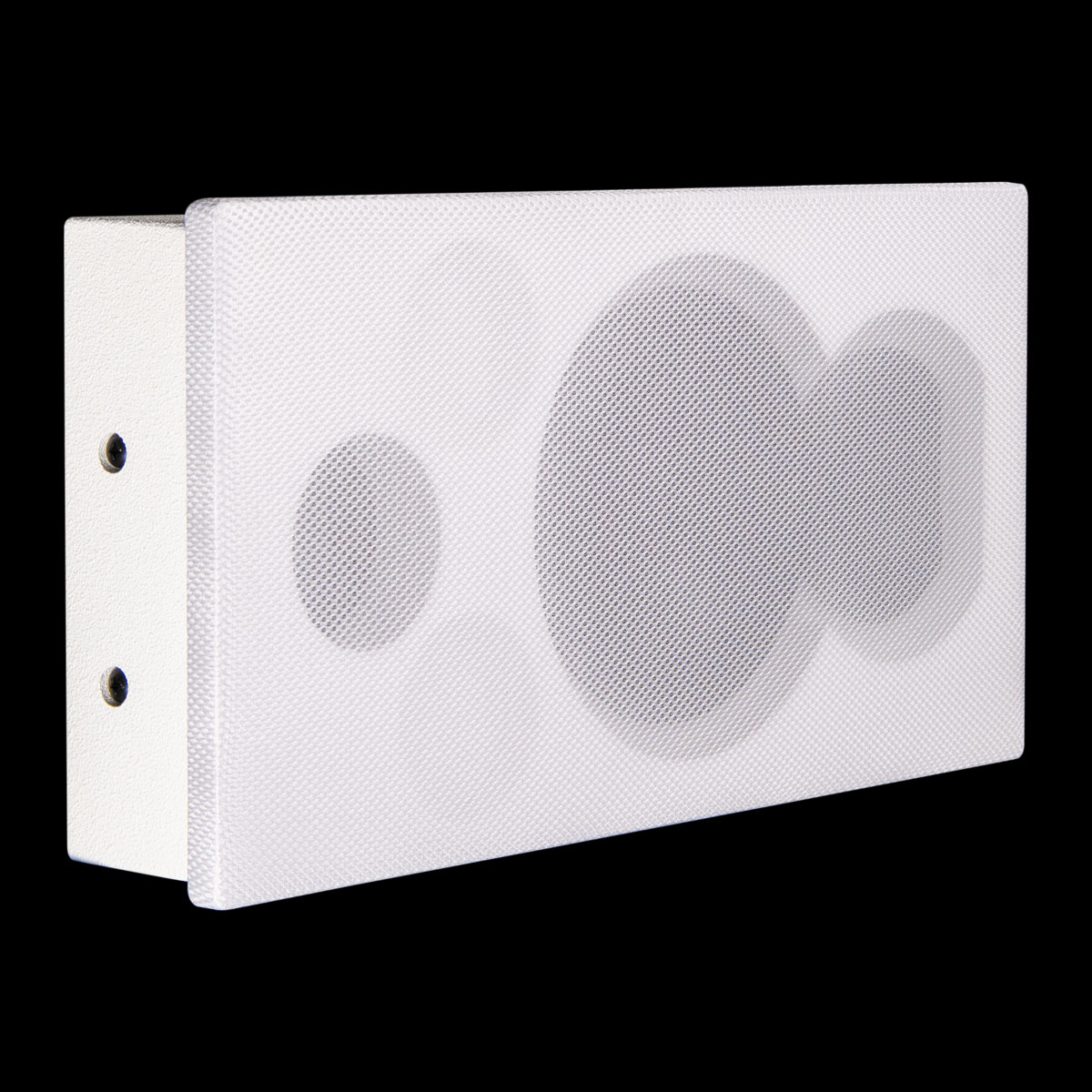

Q7 :Series

U.P.W.E. White :Finish
Yes :Wall-Mount Capable
300W :(Recommended) Handling Power
8 ohms: Impedance Nominal
1200W :(Peak) Handling Power
3500Hz – 12dB/octave :Frequencies Crossover
95Hz – 20kHz :(-10dB)Response Frequency
(2.83V@1m) 96dB Sensitivity
300W (8 Ohms) :Power Amplifier Recommended Mximum
Q7 Data Sheets
